- Part Number

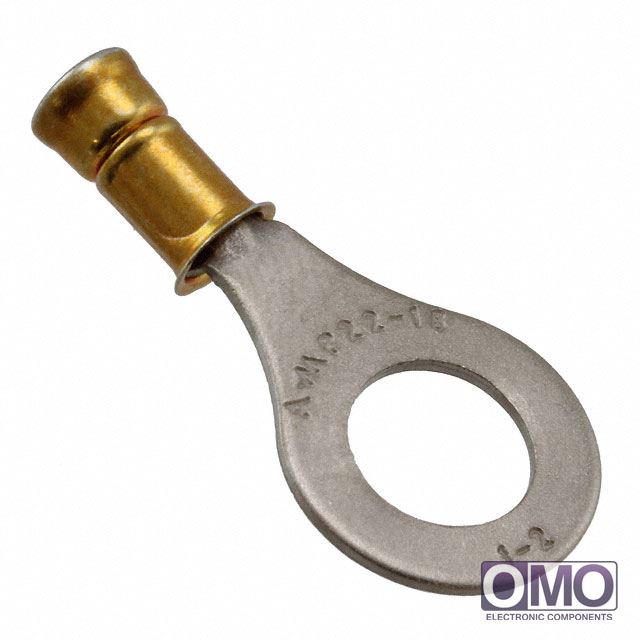

322320
- Manufacturer
TE Connectivity AMP Connectors
- Description
- DG R HT 22-16COMM 22-18MIL 1/4
- Category
- Connectors, Interconnects
- Family
- Terminals - Ring Connectors
- To learn about the specification of 322320, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 322320 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 322320.
- We are offering 322320 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 322320
| Packaging | Bulk | |
| Terminal Type | Circular | |
| Stud/Tab Size | 1/4 Stud | |
| Thickness | 0.031" (0.79mm) | |
| Width - Outer Edges | 0.468" (11.89mm) | |
| Length - Overall | 1.031" (26.19mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 16-22 AWG | |
| Insulation | Non-Insulated | |
| Features | High Temperature, Serrated Termination | |
| Color | Orange | |
| Contact Material | Nickel | |
| Contact Finish | - | |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | |
| Material - Insulation | - | |
| Other Names | 322320-ND A113446 | |
| call me | [email protected] | |
