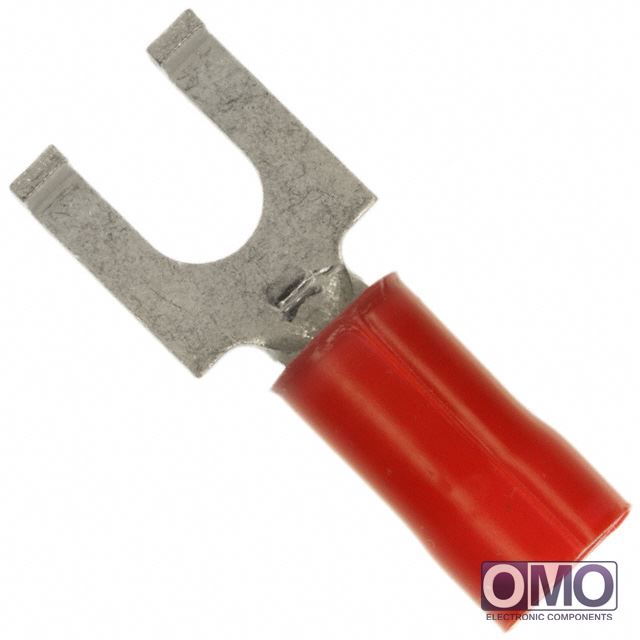

- Part Number
322249
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN SPAD FLANG 16-22 AWG #6 P-G
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 322249, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 322249 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 322249.
- We are offering 322249 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 322249
| Packaging | Bulk | |
| Terminal Type | Flanged | |
| Stud/Tab Size | 6 Stud | |
| Width - Outer Edges | 0.296" (7.52mm) | |
| Length - Overall | 0.780" (19.81mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 16-22 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Red | |
| Contact Finish | Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | |
| Length - Ring Center to Termination | 0.203" (5.16mm) | |
| Length - Termination | 0.416" (10.57mm) | |
| Tongue Inside Opening | 0.145" (3.68mm) | |
| Other Names | 2-42937-0251 A0982 | |
