3212J/2N

To learn about the specification of 3212J/2N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 3212J/2N with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 3212J/2N.
We are offering 3212J/2N for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

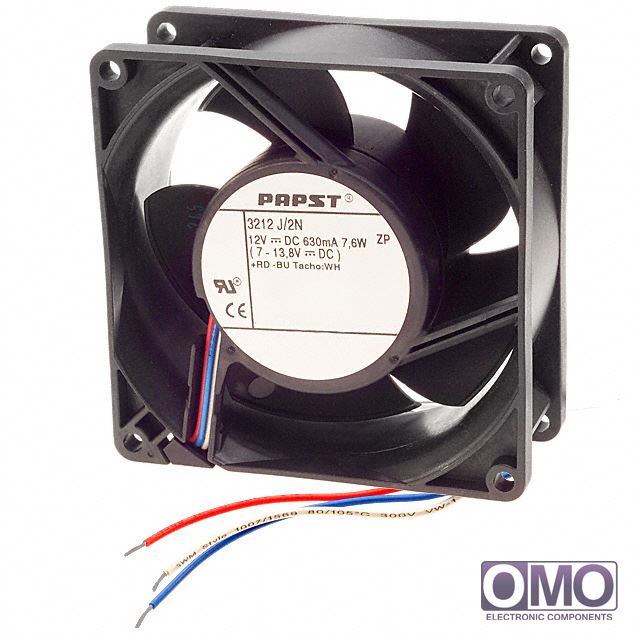

Specifications of 3212J/2N

Voltage - Rated	12VDC
Size / Dimension	Square - 92mm L x 92mm H x 38mm W
Air Flow	77.0 CFM (2.18m³/min)
Static Pressure	-
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Noise	51 dB(A)
Power (Watts)	7.50W
RPM	6000 RPM
Termination	3 Wire Leads
Ingress Protection	-
Weight	0.5 lb (226.8g)
Operating Temperature	-
Current Rating	-
Voltage Range	7 ~ 13.8VDC
Life Expectancy	-
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polyamide (PA), Fiberglass Reinforced
Other Names	381-1141
