3157-0-00-34-00-00-03-0

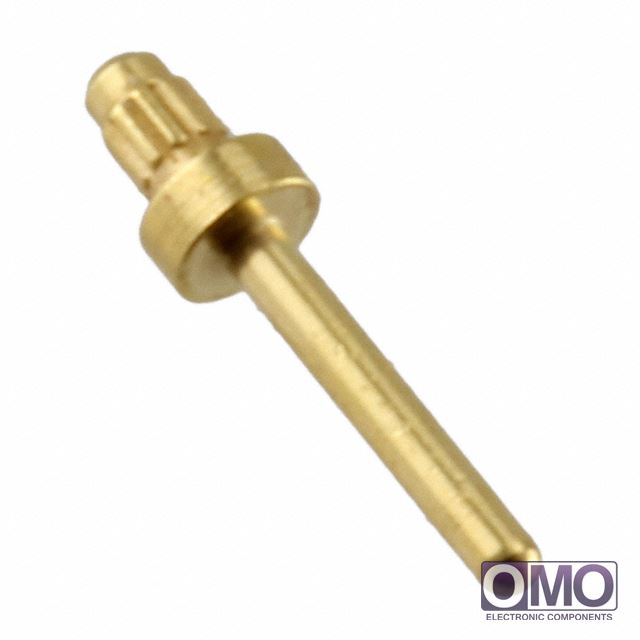

View larger image

Part Number

3157-0-00-34-00-00-03-0

Manufacturer

Description
CONN PC PIN CIRC 0.018DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 3157-0-00-34-00-00-03-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3157-0-00-34-00-00-03-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3157-0-00-34-00-00-03-0.
  • We are offering 3157-0-00-34-00-00-03-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3157-0-00-34-00-00-03-0
PackagingBulk
Terminal TypePC Pin
Terminal StyleSingle End
Pin Size - Above Flange0.018" (0.46mm) Dia
Pin Size - Below Flange0.023" (0.58mm) Dia
Length Above Flange0.125" (3.18mm)
Length Below Flange0.045" (1.14mm)
Length - Overall0.190" (4.83mm)
Flange Diameter0.045" (1.14mm)
Mounting Hole Diameter0.026" (0.66mm)
Mounting TypeThrough Hole
TerminationPress-Fit, Knurled
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness50µin (1.27µm)
Material - Insulation-
Insulation Color-
Other Names3157-000340000030
3157000340000030
Q7937463
