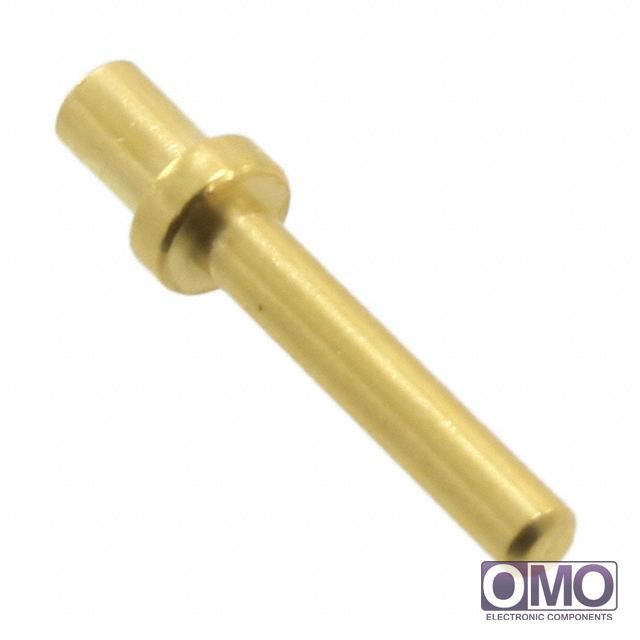

3138-2-00-15-00-00-080

View larger image

Part Number

3138-2-00-15-00-00-080

Manufacturer

Description
CONN PC PIN CIRC 0.050DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 3138-2-00-15-00-00-080, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3138-2-00-15-00-00-080 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3138-2-00-15-00-00-080.
  • We are offering 3138-2-00-15-00-00-080 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3138-2-00-15-00-00-080
PackagingBulk
Terminal TypePC Pin
Terminal StyleSingle End
Pin Size - Above Flange0.050" (1.27mm) Dia
Pin Size - Below Flange0.060" (1.52mm) Dia
Length Above Flange0.282" (7.16mm)
Length Below Flange0.094" (2.39mm)
Length - Overall0.407" (10.34mm)
Flange Diameter0.094" (2.39mm)
Mounting Hole Diameter0.064" (1.63mm)
Mounting TypeThrough Hole
TerminationSwage
InsulationNon-Insulated
Board Thickness0.062" (1.57mm)
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
