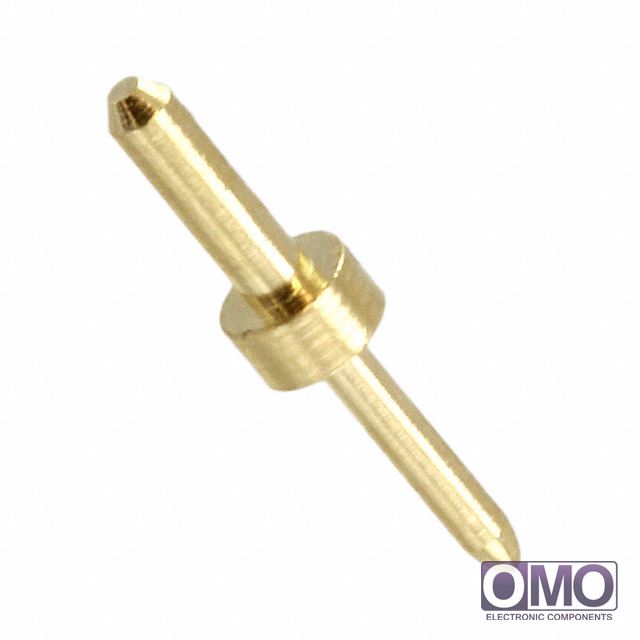

3136-3-00-15-00-00-08-0

View larger image

Part Number

3136-3-00-15-00-00-08-0

Manufacturer

Description
CONN PC PIN CIRC 0.040DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 3136-3-00-15-00-00-08-0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3136-3-00-15-00-00-08-0 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3136-3-00-15-00-00-08-0.
  • We are offering 3136-3-00-15-00-00-08-0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3136-3-00-15-00-00-08-0
PackagingBulk
Terminal TypePC Pin
Terminal StyleDouble End
Pin Size - Above Flange0.040" (1.02mm) Dia
Pin Size - Below Flange0.030" (0.76mm) Dia
Length Above Flange0.145" (3.68mm)
Length Below Flange0.180" (4.57mm)
Length - Overall0.365" (9.27mm)
Flange Diameter0.078" (1.98mm)
Mounting Hole Diameter0.043" (1.09mm)
Mounting TypeThrough Hole
TerminationSolder
InsulationNon-Insulated
Board Thickness0.125" (3.18mm)
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other Names3136-300150000080
3136-300150000080-ND
3136300150000080
ED1276
