- Part Number

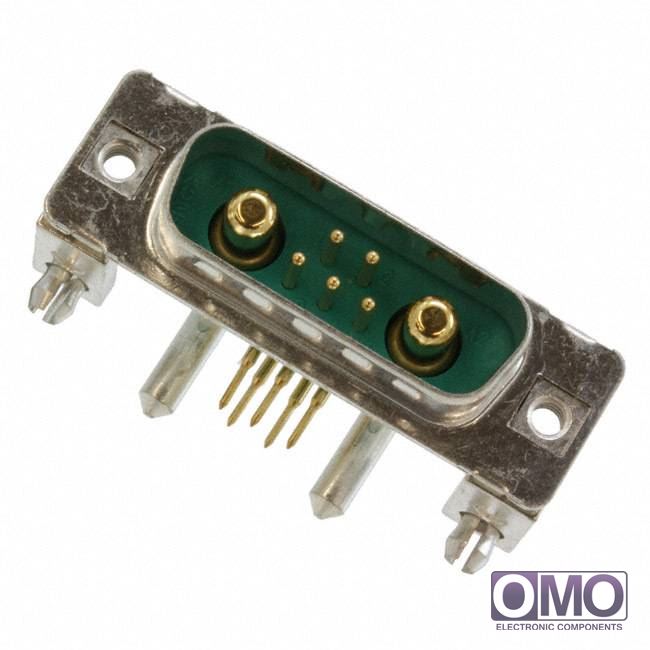

3007W2PCT56N40X
- Manufacturer
Conec
- Description
- D-Sub Connector Plug, Male Pins 7 (5 + 2 Coax or Power) Position Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 3007W2PCT56N40X, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 3007W2PCT56N40X with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 3007W2PCT56N40X.
- We are offering 3007W2PCT56N40X for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 7 (5 + 2 Coax or Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | |
| Contact Type | Signal and Power | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 20A, 7.5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Green | |
| Other Names | 626-1581 | |
