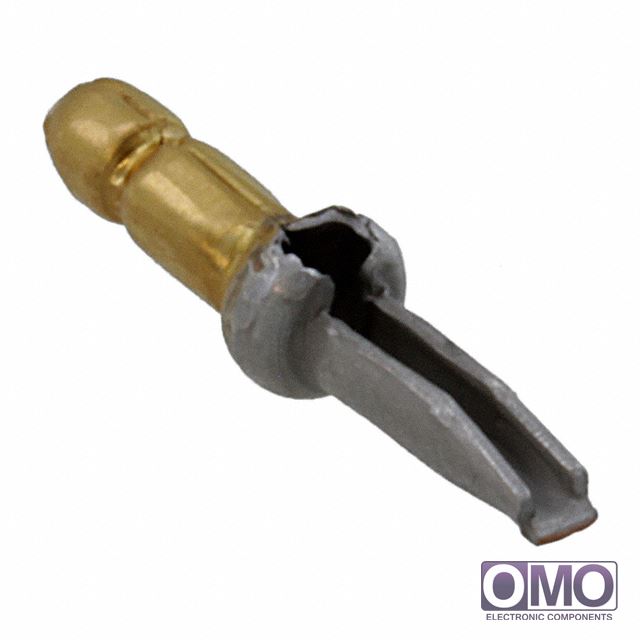

3-61067-1

View larger image

Part Number

3-61067-1

Manufacturer

Description
CONN PC PIN CIRC 0.058DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 3-61067-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3-61067-1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3-61067-1.
  • We are offering 3-61067-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3-61067-1
PackagingBulk
Terminal TypeSingle Post
Terminal StyleFlanged
Pin Size - Above Flange0.058" (1.47mm) Dia
Pin Size - Below Flange-
Length Above Flange0.160" (4.06mm)
Length Below Flange0.150" (3.81mm)
Length - Overall0.380" (9.65mm)
Flange Diameter0.085" (2.16mm)
Mounting Hole Diameter0.046" ~ 0.050" (1.17mm ~ 1.27mm)
Mounting TypeThrough Hole
TerminationPress-Fit
InsulationNon-Insulated
Board Thickness0.062" ~ 0.094" (1.57mm ~ 2.39mm)
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Material - Insulation-
Insulation Color-
