- Part Number
3-1740199-2
- Manufacturer
TE Connectivity AMP Connectors
- Description

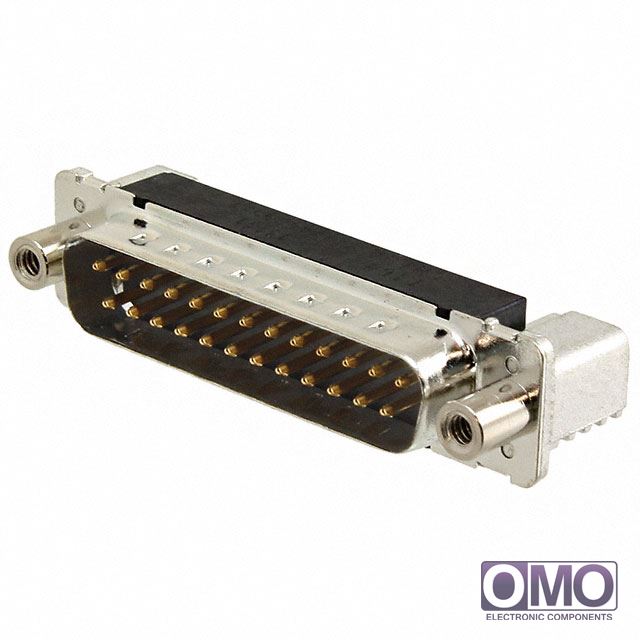

- D-Sub Connector Plug, Male Pins 25 Position Surface Mount, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 3-1740199-2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 3-1740199-2 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 3-1740199-2.
- We are offering 3-1740199-2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Cut Tape (CT) | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 25 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) | |
| Contact Type | Signal | |
| Mounting Type | Surface Mount, Right Angle | |
| Flange Feature | Mating Side; Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Guide, Grounding Indents | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 31.5µin (0.80µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | |
| Color | - | |
| Other Names | A118139CT | |
