- Part Number

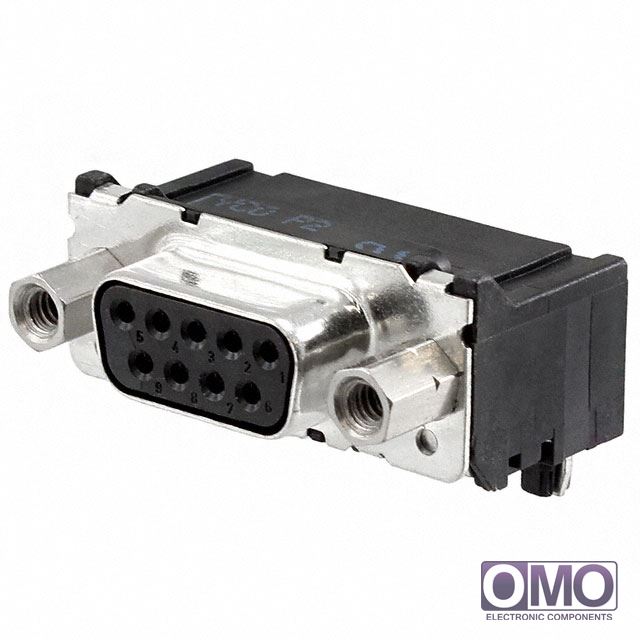

3-1393481-6
- Manufacturer
TE Connectivity AMP Connectors
- Description
- D-Sub Connector Receptacle, Female Sockets 9 Position Through Hole, Right Angle Press-Fit
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 3-1393481-6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 3-1393481-6 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 3-1393481-6.
- We are offering 3-1393481-6 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side; Female Screwlock (4-40) | |
| Termination | Press-Fit | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 2.2A | |
| Housing Material | - | |
| Color | Black | |
| Other Names | A117567 V23529R1105B209 | |
