- Part Number
2N3053
- Manufacturer
Central Semiconductor Corp
- Description
- TRANS NPN 40V 0.7A TO-39
- Category
- Discrete Semiconductor Products
- Family
- Transistors (BJT) - Single
- To learn about the specification of 2N3053, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 2N3053 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 2N3053.
- We are offering 2N3053 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 2N3053
| Packaging | Bulk | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 700mA | |
| Voltage - Collector Emitter Breakdown (Max) | 40V | |
| Vce Saturation (Max) @ Ib, Ic | 1.4V @ 15mA, 150mA | |
| Current - Collector Cutoff (Max) | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 150mA, 10V | |
| Power - Max | 5W | |
| Frequency - Transition | 100MHz | |
| Mounting Type | Through Hole | |

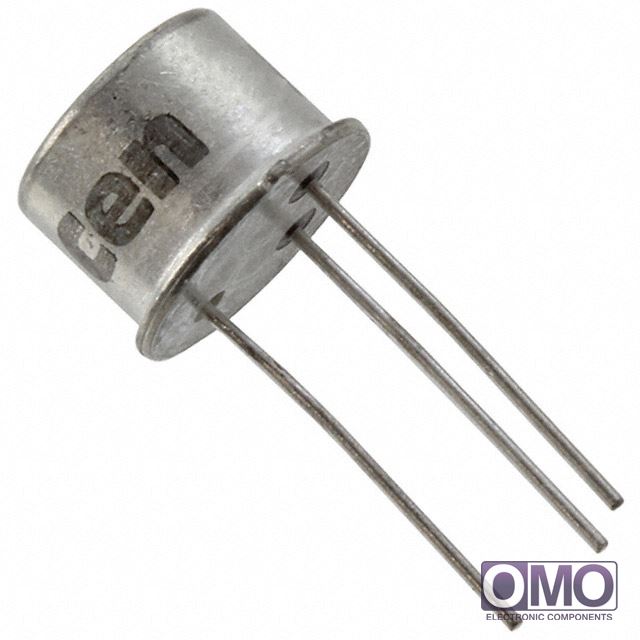

| Package / Case | TO-205AD, TO-39-3 Metal Can | |
| Supplier Device Package | TO-39 | |
| Other Names | 2N3053 LEAD FREE | |
| call me | [email protected] | |
