- Part Number
2775045
- Manufacturer
Phoenix Contact
- Description

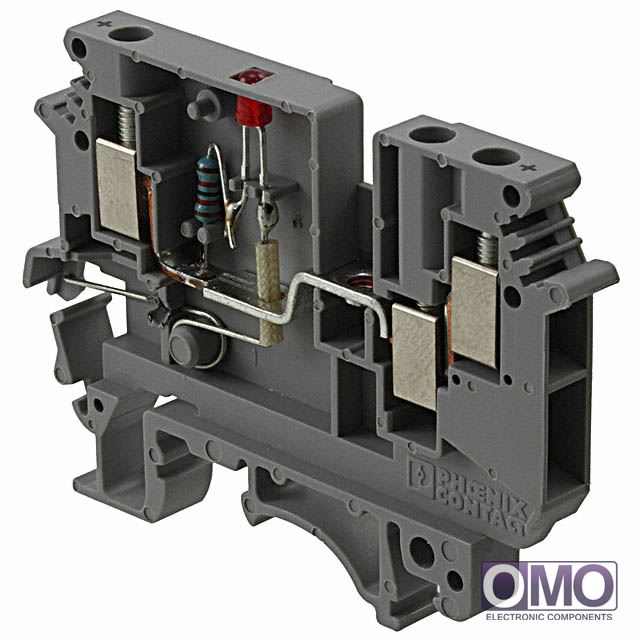

- FEED-THRU TERM BLOCK 24-10 AWG
- Category
- Connectors, Interconnects
- Family
- Terminal Blocks - Din Rail, Channel
- To learn about the specification of 2775045, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 2775045 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 2775045.
- We are offering 2775045 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 2775045
| Type | Feed Through | |
| Disconnect Type | - | |
| Number of Positions | 3 | |
| Number of Levels | 2 | |
| Terminal - Width | 6.2mm | |
| Termination Style | Screw | |
| Current - IEC | 32A | |
| Voltage - IEC | 500V | |
| Current - UL | 30A | |
| Voltage - UL | 600V | |
| Wire Gauge or Range - AWG | 10-30 AWG | |
| Wire Gauge or Range - mm² | 0.2-6mm² | |
| Features | LED | |
| Color | Gray | |
| Fuse Type | - | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Material Flammability Rating | UL94 V-2 | |
| Stripping Length | 8mm | |
| Other Names | 277-3929 2775045-ND UDK4-ULA24RD/O-U | |
| call me | [email protected] | |
