Part Number

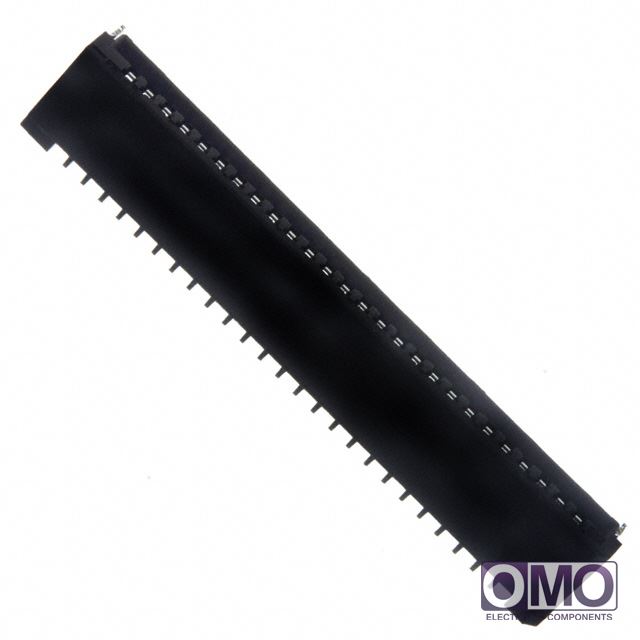

26FMN-SMT-A-TF(LF)(SN)

Manufacturer

Description
CONN FFC TOP 26POS 1.00MM R/A
Category
Connectors, Interconnects
Family
FFC, FPC (Flat Flexible) Connectors

  • To learn about the specification of 26FMN-SMT-A-TF(LF)(SN), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 26FMN-SMT-A-TF(LF)(SN) with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 26FMN-SMT-A-TF(LF)(SN).
  • We are offering 26FMN-SMT-A-TF(LF)(SN) for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 26FMN-SMT-A-TF(LF)(SN)
PackagingTape & Reel (TR)
Flat Flex TypeFFC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Top
Number of Positions26
Pitch0.039" (1.00mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.118" (3.00mm)
Locking Feature-
Cable End TypeStraight
Contact MaterialPhosphor Bronze
Contact FinishTin
Housing MaterialPolyamide (PA6T), Nylon 6T
Actuator Material-
FeaturesLow Insertion Force (LIF)
Voltage Rating50V
Operating Temperature-25°C ~ 85°C
Material Flammability RatingUL94 V-0
Current Rating0.5A
Other Names455-1955-2
