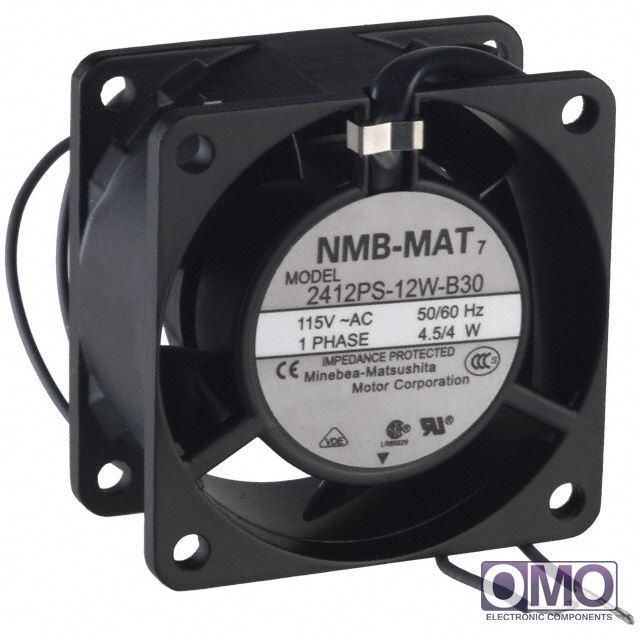

2412PS-12W-B30-A00

To learn about the specification of 2412PS-12W-B30-A00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2412PS-12W-B30-A00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 2412PS-12W-B30-A00.
We are offering 2412PS-12W-B30-A00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 2412PS-12W-B30-A00

Type	AC
Voltage - Rated	115VAC
Size / Dimension	Square - 60mm L x 60mm H x 30mm W
Air Flow	9.1 CFM (0.258m³/min)
Static Pressure	0.090 in H2O (22.5 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	-
Noise	29 dB
Power (Watts)	4W
RPM	2600 RPM
Termination	2 Wire Leads
Ingress Protection	-
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Weight	0.3 lb (136.08g)
Current Rating	0.060A
Voltage Range	-
Life Expectancy	50000 hrs @ 25°C
Material - Frame	Aluminum
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Other Names	06030PB-A1L-AA-00 2412PS12WB30A00 P12871
