22R156C

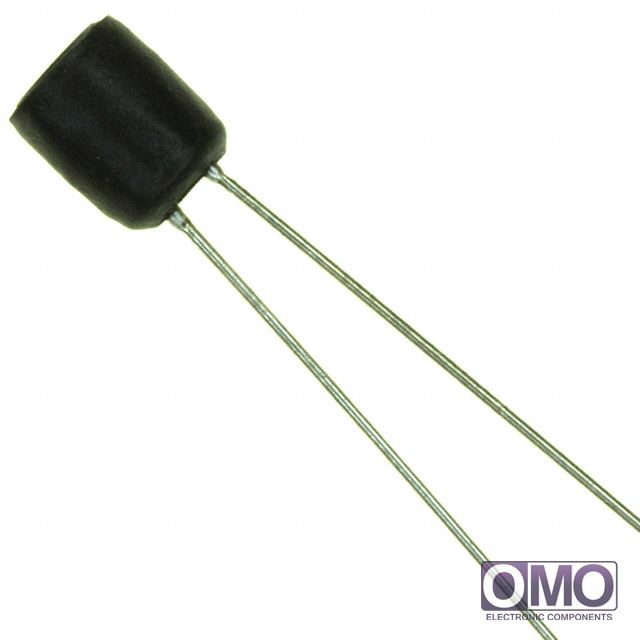

View larger image

Part Number

22R156C

Manufacturer

Description
FIXED IND 15MH 54MA 51.7 OHM TH
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of 22R156C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 22R156C with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 22R156C.
  • We are offering 22R156C for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 22R156C
PackagingBulk
TypeWirewound
Material - Core-
Inductance15mH
Tolerance±10%
Current Rating54mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)51.7 Ohm Max
Q @ Freq140 @ 150kHz
Frequency - Self Resonant510kHz
Operating Temperature-25°C ~ 70°C
Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.283" Dia (7.20mm)
Height - Seated (Max)0.355" (9.00mm)
Supplier Device Package-
Other Names811-1302
