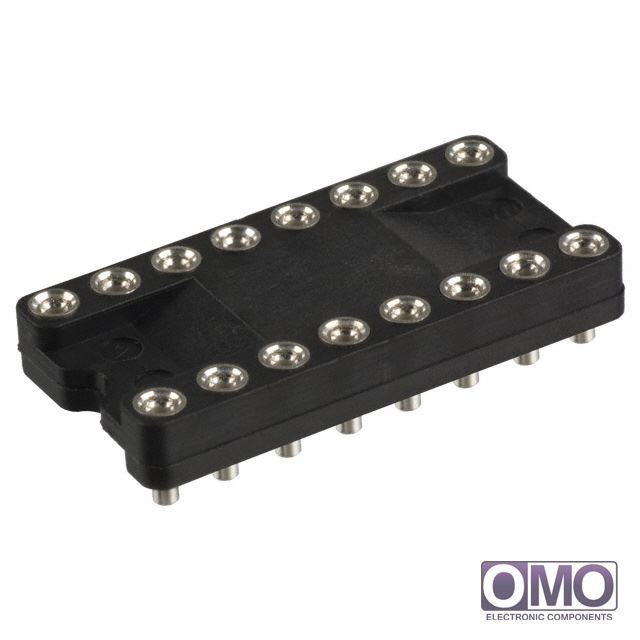

214-99-316-01-670800

To learn about the specification of 214-99-316-01-670800, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 214-99-316-01-670800 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 214-99-316-01-670800.
We are offering 214-99-316-01-670800 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 214-99-316-01-670800

Packaging	Tube
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	16 (2 x 8)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	100µin (2.54µm)
Contact Material - Mating	Beryllium Copper
Mounting Type	Surface Mount
Features	Closed Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Post	200µin (5.08µm)
Contact Material - Post	Brass Alloy
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature	-55°C ~ 125°C
Termination Post Length	0.056" (1.42mm)
Material Flammability Rating	-
Current Rating	3A
Contact Resistance	-
Other Names	2149931601670800 ED2130
