- Part Number

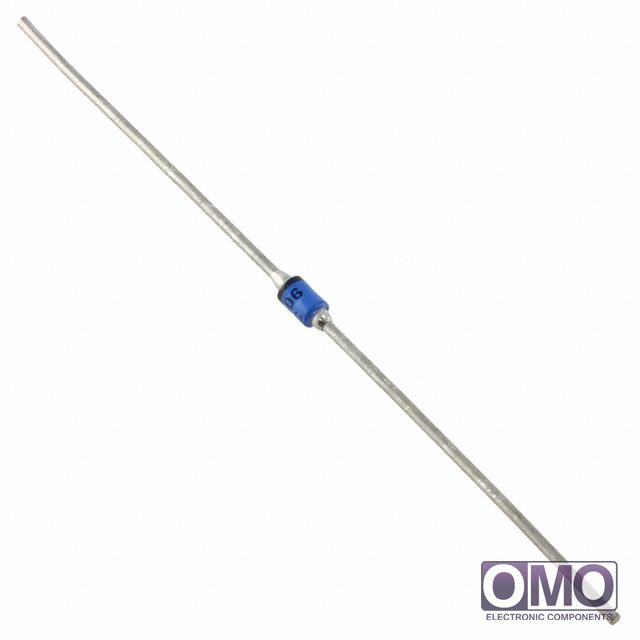

1N5806TR
- Manufacturer
Microsemi Commercial Components
- Description
- DIODE GEN PURP 150V 2.5A AXIAL
- Category
- Discrete Semiconductor Products
- Family
- Diodes, Rectifiers - Single
- To learn about the specification of 1N5806TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1N5806TR with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1N5806TR.
- We are offering 1N5806TR for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1N5806TR
| Packaging | Tape & Reel (TR) | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 150V | |
| Current - Average Rectified (Io) | 2.5A | |
| Voltage - Forward (Vf) (Max) @ If | 875mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 25ns | |
| Current - Reverse Leakage @ Vr | 1µA @ 150V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |
| Package / Case | A, Axial | |
| Supplier Device Package | A-PAK | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| Other Names | 1N5806 1N5806E3 1N5806E3TR 1N5806E3TR-ND 1N5806TR-ND 1N5806TRTR | |
| call me | [email protected] | |
