- Part Number

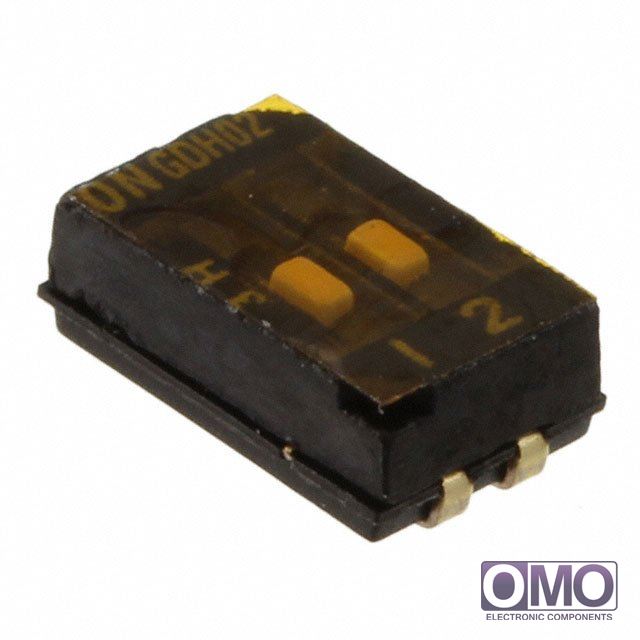

1977830-1
- Manufacturer
TE Connectivity Alcoswitch Switches
- Description
- SWITCH DIP 2POS SMD
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of 1977830-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1977830-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1977830-1.
- We are offering 1977830-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1977830-1
| Packaging | Tube | |
| Circuit | SPST | |
| Number of Positions | 2 | |
| Current Rating | 25mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.093" (2.35mm) | |
| Mounting Type | Surface Mount | |
| Termination Style | J Lead | |
| Pitch | 0.050" (1.27mm), Half | |
| Washable | Yes | |
| Features | Tape Seal | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.144" (3.67mm) | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | 1,000 Cycles | |
| Electrical Life | 1,000 Cycles | |
| Other Names | GDH02SA04 GDH02SA04-ND | |
