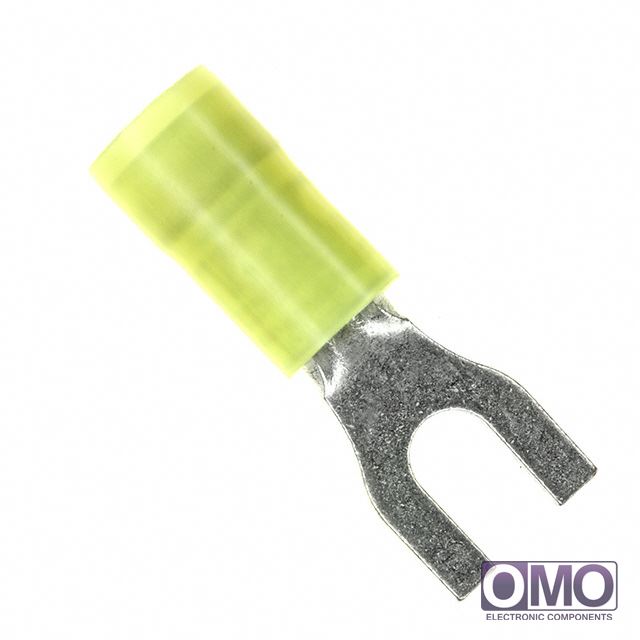

- Part Number
19198-0047
- Manufacturer
Molex Connector Corporation
- Description
- CONN TONGUE SPADE #8 10-12AWG
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 19198-0047, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 19198-0047 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 19198-0047.
- We are offering 19198-0047 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 19198-0047
| Packaging | Bulk | |
| Terminal Type | Standard | |
| Stud/Tab Size | 8 Stud | |
| Width - Outer Edges | 0.375" (9.53mm) | |
| Length - Overall | 1.118" (28.40mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 10-12 AWG | |
| Insulation | Insulated | |
| Features | - | |
| Color | Yellow | |
| Contact Finish | Electro-Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.225" (5.72mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.301" (7.65mm) | |
| Length - Termination | 0.560" (14.22mm) | |
| Tongue Inside Opening | 0.173" (4.39mm) | |
| Other Names | 0191980047 191-98-0047-C 19198-0047-C 191980047 C-841-08 WM18371 | |
| call me | [email protected] | |
