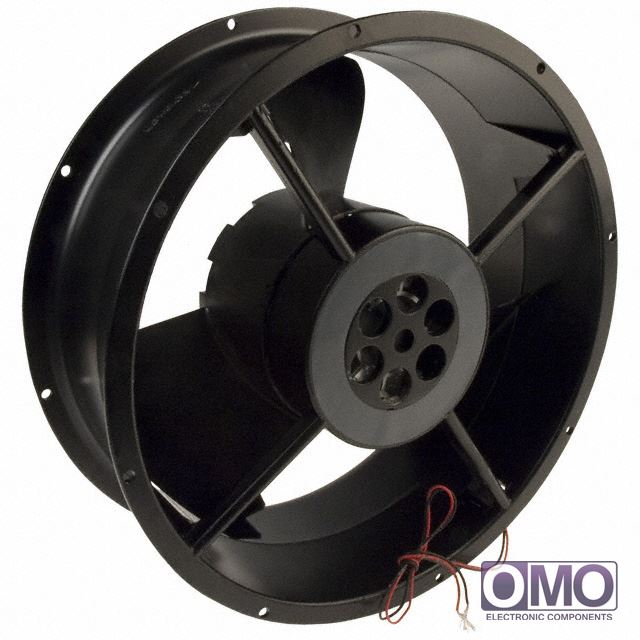

19031767A

View larger image

Part Number

19031767A

Manufacturer

Description
FAN AXIAL 254X88.9MM 48V CD48B3
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of 19031767A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 19031767A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 19031767A.
  • We are offering 19031767A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 19031767A
Voltage - Rated48VDC
Size / DimensionRound - 254mm Dia x 88.9mm W
Air Flow550.0 CFM (15.58m³/min)
Static Pressure0.300 in H2O (74.7 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise49.1 dB(A)
Power (Watts)30.2W
RPM1640 RPM
Termination2 Wire Leads
Ingress Protection-
Weight4.4 lbs (2kg)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.630A
Voltage Range24 ~ 56VDC
Life Expectancy60000 hrs @ 40°C
Material - FrameAluminum
Material - BladePlastic
Other Names031767
CD48B3
CR303
Q7146568
