19031101A

View larger image

Part Number

19031101A

Manufacturer

Description

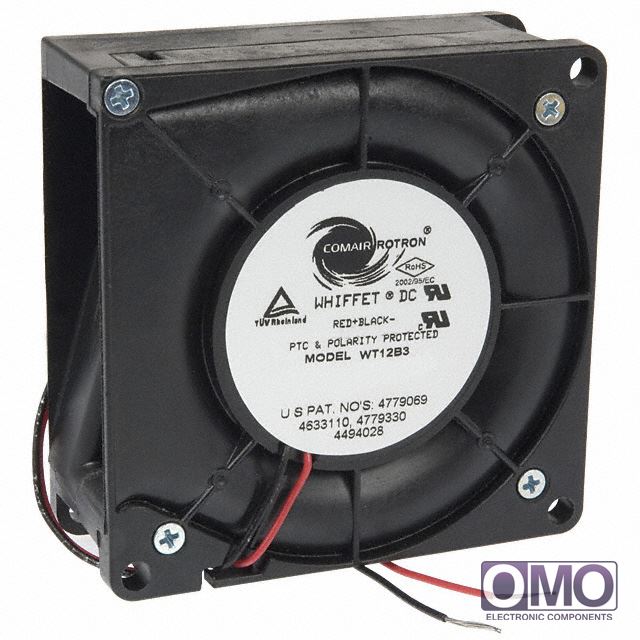

FAN BLOWER 80X32.4MM 12V WT12B3
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of 19031101A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 19031101A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 19031101A.
  • We are offering 19031101A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 19031101A
Voltage - Rated12VDC
Size / DimensionSquare - 80mm L x 80mm H x 32.4mm W
Air Flow15.0 CFM (0.425m³/min)
Static Pressure0.620 in H2O (154.4 Pa)
Bearing TypeBall
Fan TypeBlower
Features-
Noise52.2 dB(A)
Power (Watts)5.00W
RPM4000 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.369 lb (167.38g)
Operating Temperature-
Current Rating0.420A
Voltage Range6 ~ 14VDC
Life Expectancy-
Material - FramePlastic
Material - BladePlastic
Other Names031101
CR304
WT12B3
