- Part Number
189-025-413R691
- Manufacturer
NorComp
- Description

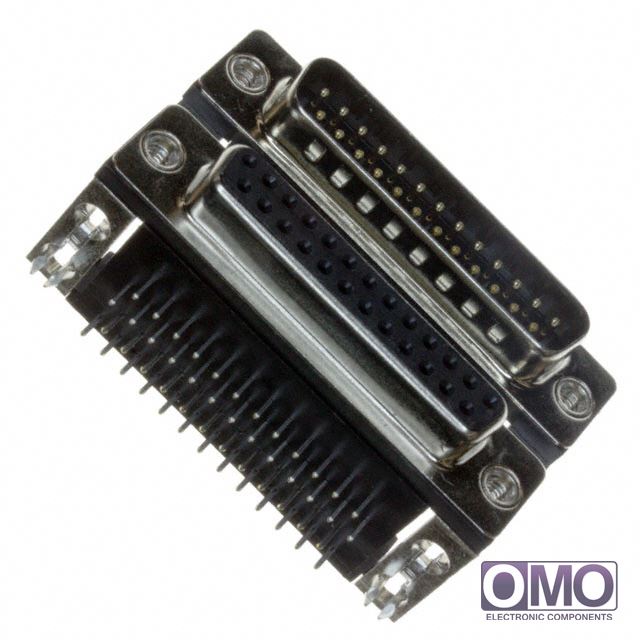

- D-Sub Connector Plug, Male Pins; Receptacle, Female Sockets 25, 25 Position Board Edge, Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 189-025-413R691, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 189-025-413R691 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 189-025-413R691.
- We are offering 189-025-413R691 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub - Stacked | |
| Connector Type | Plug, Male Pins; Receptacle, Female Sockets | |
| Number of Positions | 25, 25 | |
| Number of Rows | 2, 2 | |
| Shell Size, Connector Layout | 3 (DB, B); 3 (DB, B) | |
| Contact Type | Signal | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock, Grounding Indents, Shielded | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polyamide (PA9T), Nylon 9T | |
| Color | Black | |
| Other Names | 189-125MFE | |
