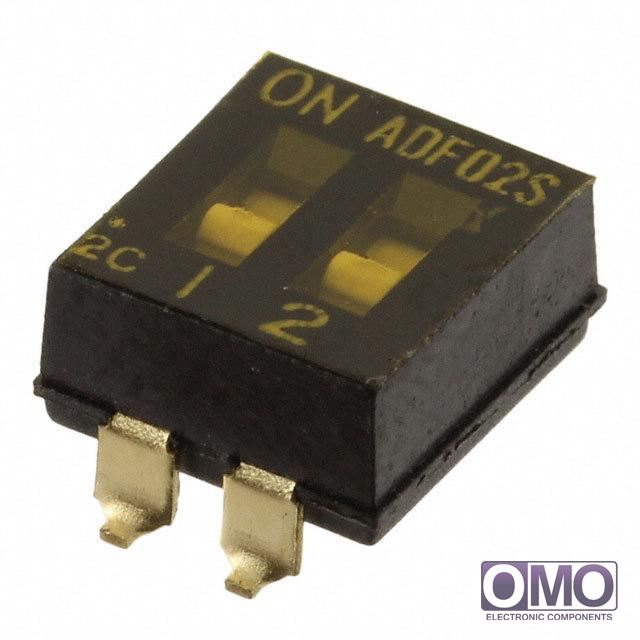

- Part Number
1825059-6
- Manufacturer
TE Connectivity AMP Connectors
- Description
- SWITCH DIP FLUSH 2POS SMD GW 24V
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of 1825059-6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1825059-6 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1825059-6.
- We are offering 1825059-6 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1825059-6
| Packaging | Tape & Reel (TR) | |
| Circuit | SPST | |
| Number of Positions | 2 | |
| Current Rating | 100mA | |
| Voltage Rating | 24VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.177" (4.50mm) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Tape Seal | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.278" (7.06mm) | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | 1,000 Cycles | |
| Electrical Life | 1,000 Cycles | |
| Other Names | 1825059-6-ND 18250596 A105447TR ADF02STTR04 | |
| call me | [email protected] | |
