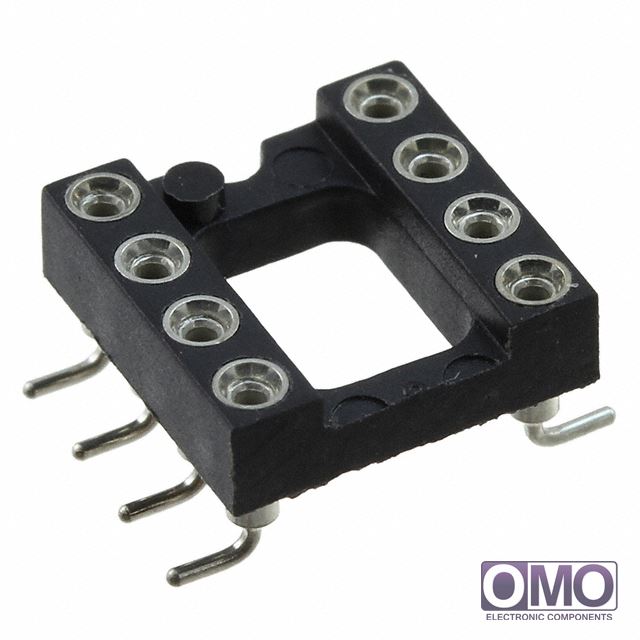

1814640-8

To learn about the specification of 1814640-8, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 1814640-8 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 1814640-8.
We are offering 1814640-8 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 1814640-8

Packaging	Tape & Reel (TR)
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	8 (2 x 4)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200µin (5.08µm)
Contact Material - Mating	Beryllium Copper
Mounting Type	Surface Mount
Features	Open Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200µin (5.08µm)
Contact Material - Post	Brass
Housing Material	Thermoplastic, Polyester
Operating Temperature	-55°C ~ 125°C
Termination Post Length	-
Material Flammability Rating	UL94 V-0
Current Rating	1A
Contact Resistance	10 mOhm
Other Names	1814640-8-ND A114987
