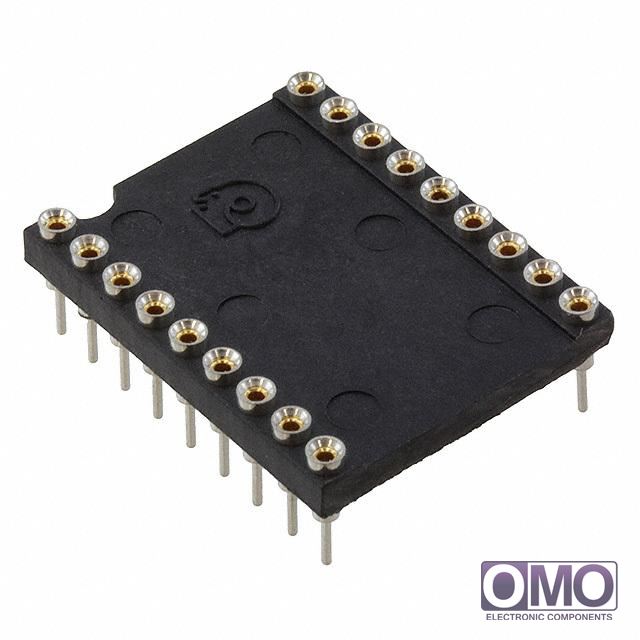

18-6513-10

To learn about the specification of 18-6513-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 18-6513-10 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 18-6513-10.
We are offering 18-6513-10 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 18-6513-10

Packaging	Bulk
Type	DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid)	18 (2 x 9)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10µin (0.25µm)
Contact Material - Mating	Beryllium Copper
Mounting Type	Through Hole
Features	Closed Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200µin (5.08µm)
Contact Material - Post	Brass
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature	-
Termination Post Length	0.125" (3.18mm)
Material Flammability Rating	UL94 V-0
Current Rating	3A
Contact Resistance	-
Other Names	18-6513-10-ND A827AR Q4552665K
