- Part Number

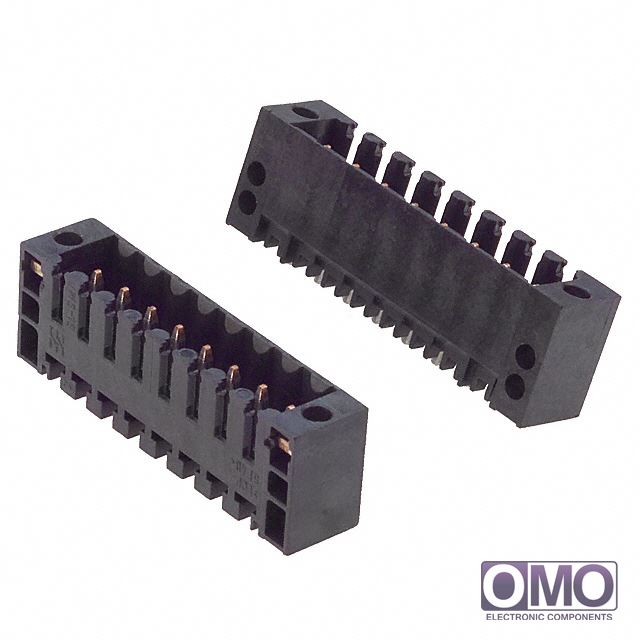

1761022001
- Manufacturer
Weidmüller
- Description
- TERM BLOCK HDR 8POS VERT 3.5MM
- Category
- Connectors, Interconnects
- Family
- Terminal Blocks - Headers, Plugs and Sockets
- To learn about the specification of 1761022001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1761022001 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1761022001.
- We are offering 1761022001 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1761022001
| Packaging | Bulk | |
| Type | Header, Male Pins, Shrouded (4 Side) | |
| Number of Positions | 8 | |
| Positions Per Level | 8 | |
| Number of Levels | 1 | |
| Pitch | 0.138" (3.50mm) | |
| Header Orientation | Vertical | |
| Plug Wire Entry | - | |
| Termination Style | Solder | |
| Mounting Type | Through Hole | |
| Current - IEC | 15A | |
| Voltage - IEC | 320V | |
| Current - UL | 10A | |
| Voltage - UL | 300V | |
| Wire Gauge or Range - AWG | - | |
| Wire Gauge or Range - mm² | - | |
| Color | Black | |
| Operating Temperature | -50°C ~ 100°C | |
| Contact Mating Finish | Tin | |
| Features | Mating and Mounting Flange | |
| Other Names | 281-1785 SL-SMT3.5/8/180LF | |
| call me | [email protected] | |
