- Part Number
172-E50-103R911
- Manufacturer
NorComp
- Description

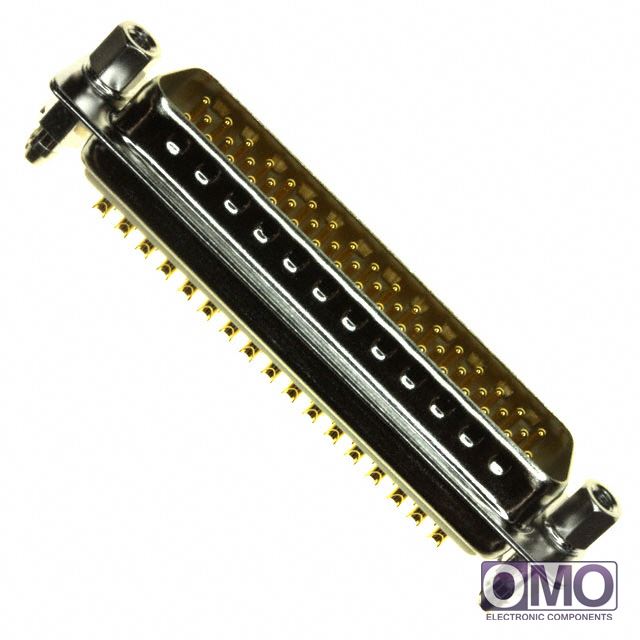

- D-Sub Connector Plug, Male Pins 50 Position Free Hanging (In-Line); Panel Mount Solder Cup
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 172-E50-103R911, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 172-E50-103R911 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 172-E50-103R911.
- We are offering 172-E50-103R911 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 50 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 5 (DD, D) | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line); Panel Mount | |
| Flange Feature | Mating Side; Female Screwlock (4-40) | |
| Termination | Solder Cup | |
| Features | Board Lock, Grounding Indents | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -50°C ~ 100°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Color | White | |
| Other Names | 102950MEA 172E50103R911 | |
