- Part Number
1689776
- Manufacturer
Phoenix Contact
- Description

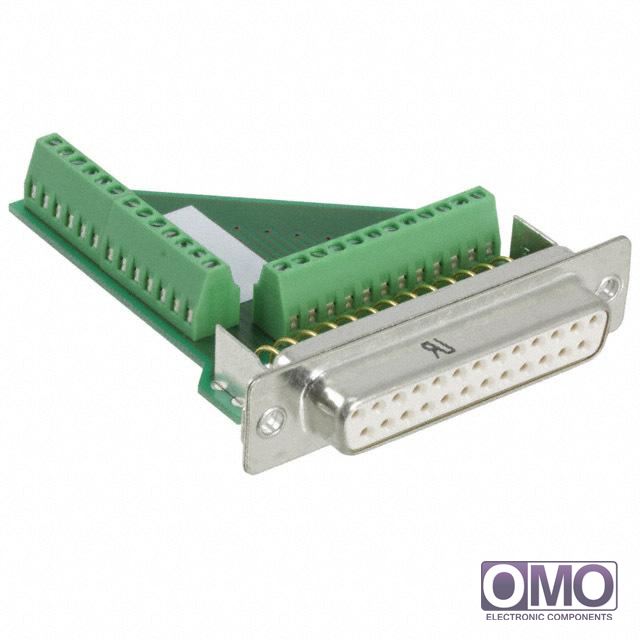

- D-Sub Connector Receptacle, Female Sockets 25 Position Panel Mount Terminal Block
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 1689776, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1689776 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1689776.
- We are offering 1689776 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 25 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Terminal Block | |
| Features | - | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -20°C ~ 80°C | |
| Voltage Rating | 60V | |
| Current Rating | 5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | |
| Color | - | |
| Other Names | 1689776-ND 277-2677 VS-25-BU-DSUB/25-MPT-0.5 | |
