- Part Number
1689336
- Manufacturer
Phoenix Contact
- Description

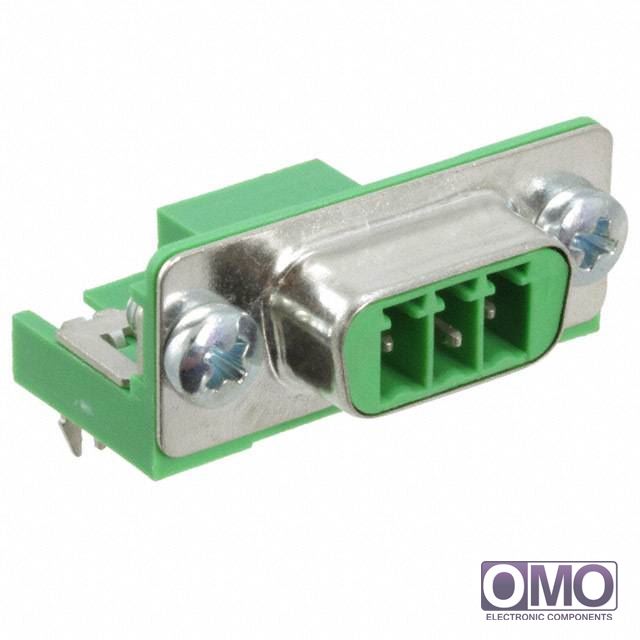

- D-Sub Connector Receptacle, Male Pins 3 (Power) Position Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 1689336, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1689336 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1689336.
- We are offering 1689336 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Type | |
| Connector Type | Receptacle, Male Pins | |
| Number of Positions | 3 (Power) | |
| Number of Rows | 1 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Power | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side; Standard Screws | |
| Termination | Solder | |
| Features | Board Lock, Shielded | |
| Shell Material, Finish | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -20°C ~ 80°C | |
| Voltage Rating | 250V | |
| Current Rating | 8A | |
| Housing Material | Polyamide (PA), Nylon | |
| Color | Green | |
| Other Names | 1689336-ND 277-8546 VS-PSC1.5/3 VSPSC153 | |
