- Part Number
1688078
- Manufacturer
Phoenix Contact
- Description

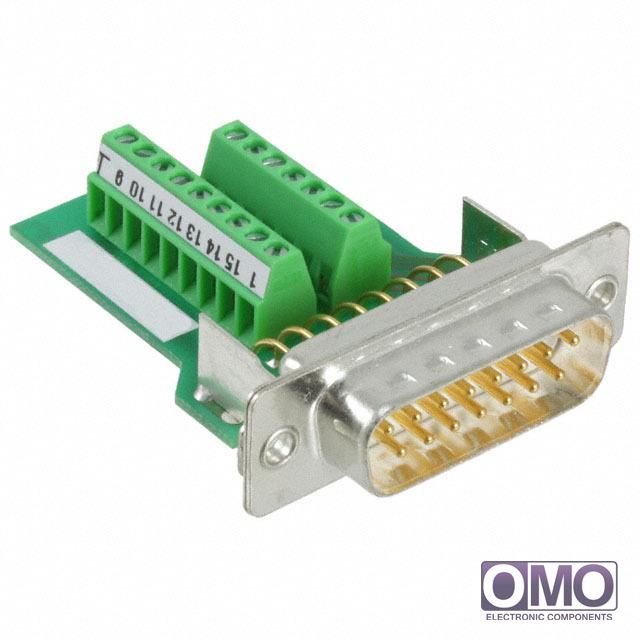

- D-Sub Connector Plug, Male Pins 15 Position Panel Mount Terminal Block
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 1688078, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1688078 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1688078.
- We are offering 1688078 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Terminal Block | |
| Features | - | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | IP20 | |
| Operating Temperature | -20°C ~ 80°C | |
| Voltage Rating | 60V | |
| Current Rating | 5A | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | |
| Color | - | |
| Other Names | 1688078-ND 277-2669 VS-15-ST-DSUB/15-MPT-0,5 | |
