- Part Number

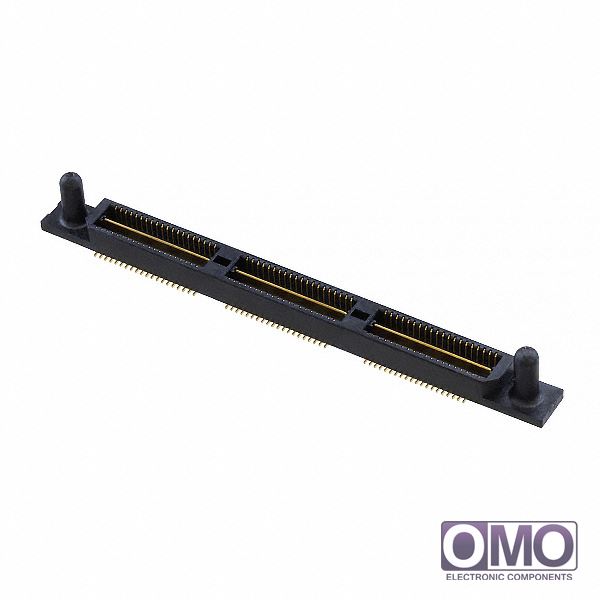

1658063-3
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN PLUG 120POS 0.8MM SMD GOLD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 1658063-3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1658063-3 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1658063-3.
- We are offering 1658063-3 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1658063-3
| Packaging | Tray | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 120 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Ground Bus (Plane) | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | 0.168" (4.27mm) | |
| Other Names | A118280 | |
| call me | [email protected] | |
