- Part Number

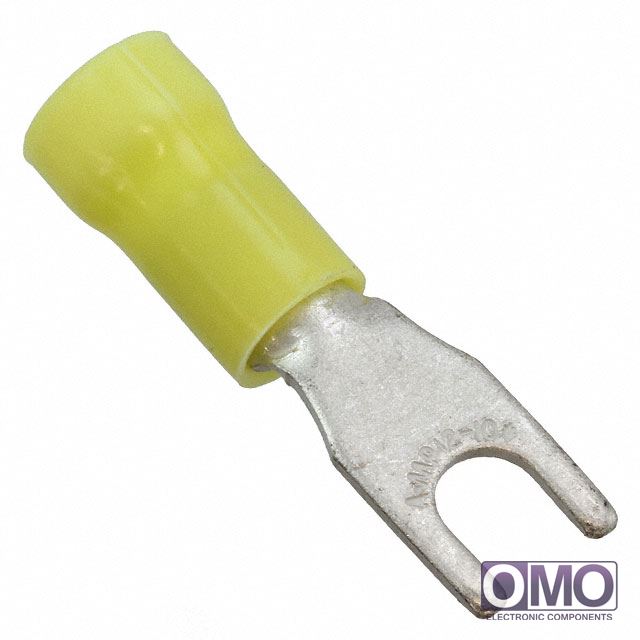

165015
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN SPADE TONGUE 12-10AWG P-G
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 165015, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 165015 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 165015.
- We are offering 165015 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 165015
| Packaging | Bulk | |
| Terminal Type | Standard | |
| Stud/Tab Size | 8 Stud | |
| Width - Outer Edges | 0.315" (8.00mm) | |
| Length - Overall | 1.238" (31.45mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 10-12 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Yellow | |
| Contact Finish | Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.150" ~ 0.252" (3.81mm ~ 6.40mm) | |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | |
| Length - Ring Center to Termination | 0.468" (11.89mm) | |
| Length - Termination | 0.606" (15.39mm) | |
| Tongue Inside Opening | 0.185" (4.70mm) | |
| call me | [email protected] | |
