- Part Number

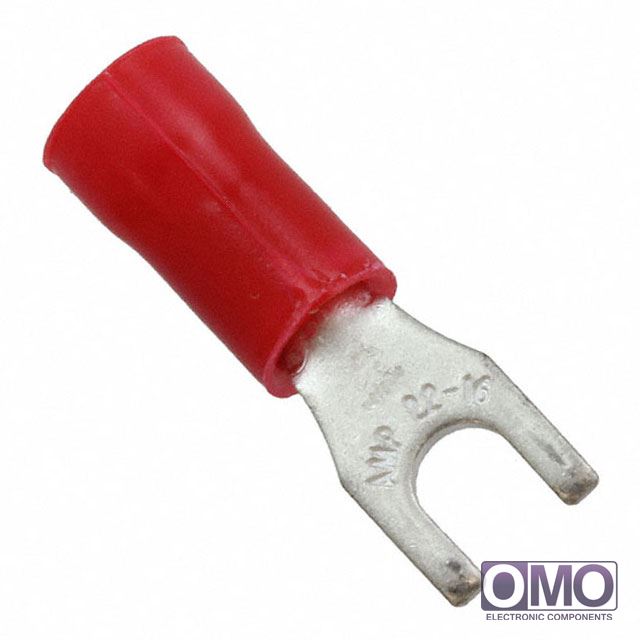

165004
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN SPADE TONGUE 22-16AWG P-G
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 165004, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 165004 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 165004.
- We are offering 165004 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 165004
| Packaging | Bulk | |
| Terminal Type | Standard | |
| Stud/Tab Size | 4 Stud | |
| Width - Outer Edges | 0.218" (5.54mm) | |
| Length - Overall | 0.784" (19.91mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 16-22 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Red | |
| Contact Finish | Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.145" ~ 0.160" (3.68mm ~ 4.06mm) | |
| Material - Insulation | - | |
| Length - Ring Center to Termination | 0.268" (6.81mm) | |
| Length - Termination | 0.406" (10.31mm) | |
| Tongue Inside Opening | 0.119" (3.02mm) | |
| Other Names | 165004-ND A121038 | |
| call me | [email protected] | |
