- Part Number
1520-4
- Manufacturer
Keystone Electronics Corp.
- Description
- TERMINAL TURRET SINGLE .172"L
- Category
- Connectors, Interconnects
- Family
- Terminals - Turret Connectors
- To learn about the specification of 1520-4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1520-4 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1520-4.
- We are offering 1520-4 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1520-4
| Terminal Type | Single End | |
| Number of Turrets | Single | |
| Length - Above Board | 0.187" (4.75mm) | |
| Length - Below Flange | 0.172" (4.37mm) | |
| Length - Overall | 0.359" (9.12mm) | |
| Mounting Type | Through Hole | |
| Termination | Staking Flare | |
| Flange Diameter | 0.125" (3.18mm) | |
| Diameter - Turret Head | 0.075" (1.91mm) | |
| Staking Side OD | 0.078" (1.98mm) | |
| Staking Side ID | - | |
| Mounting Hole Diameter | 0.082" (2.08mm) | |
| Board Thickness | 0.125" (3.18mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Other Names | 1520-4-ND 1520-4K 1520-4K-ND 36-1520-4 Q148140 | |
| call me | [email protected] | |
1520-4 Related Products
1593-2
TERMINAL TURRET DBL .084"L
1595-2
TERMINAL TURRET 2-56THR .125"L
1502-2
TERMINAL DBL TURRET .109"L BRASS
1520-4
TERMINAL TURRET SINGLE .172"L
1587-2
TERMINAL TURRET 4-40THR .188"L

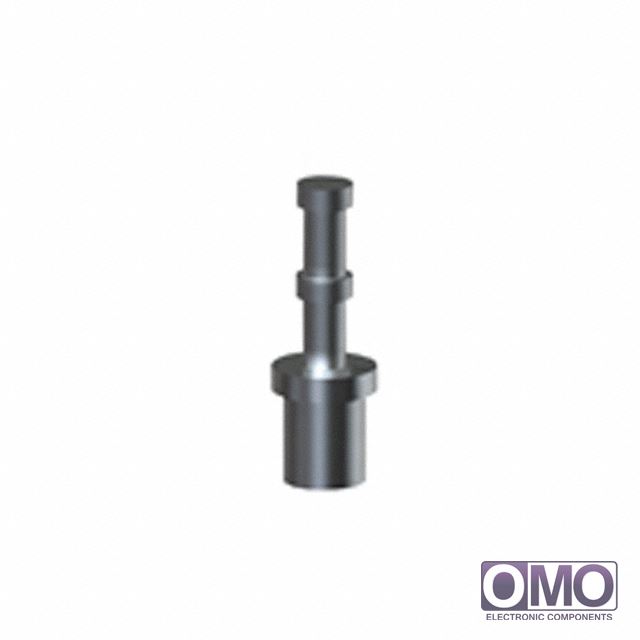

1573-3
TERMINAL TURRET DBL .113"L
1563
TERMINAL TURRET 4-40THR .043"DIA
1502-1
TERMINAL DBL TURRET .078"L BRASS
1502-3
TERMINAL DBL TURRET .141"L BRASS

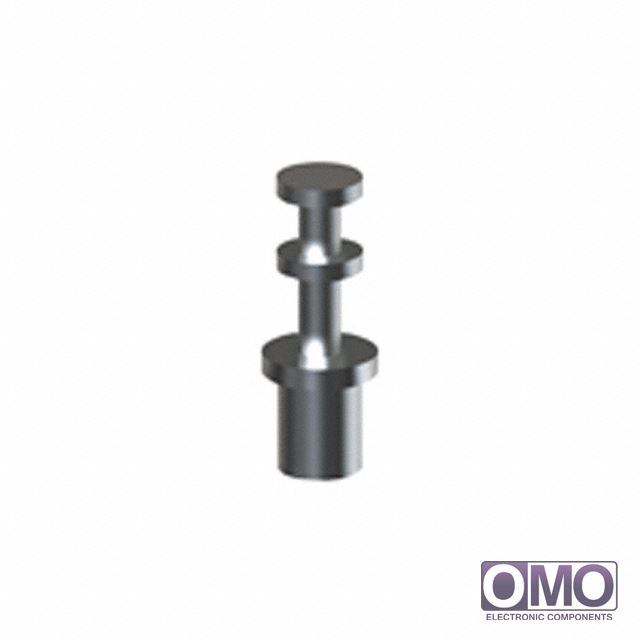

1502-4
