- Part Number
1508-2
- Manufacturer
Keystone Electronics Corp.
- Description

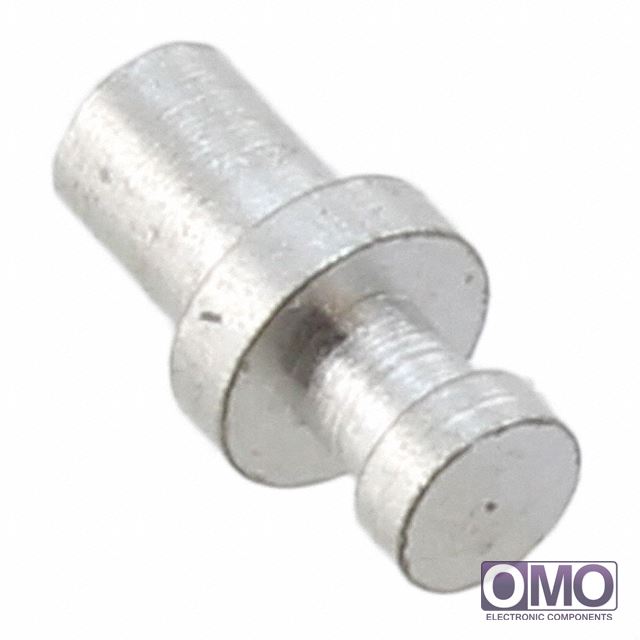

- TERMINAL SINGLE TURRET .084" L
- Category
- Connectors, Interconnects
- Family
- Terminals - Turret Connectors
- To learn about the specification of 1508-2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1508-2 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1508-2.
- We are offering 1508-2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1508-2
| Terminal Type | Single End | |
| Number of Turrets | Single | |
| Length - Above Board | 0.093" (2.36mm) | |
| Length - Below Flange | 0.084" (2.13mm) | |
| Length - Overall | 0.177" (4.50mm) | |
| Mounting Type | Through Hole | |
| Termination | Staking Flare | |
| Flange Diameter | 0.094" (2.39mm) | |
| Diameter - Turret Head | 0.063" (1.60mm) | |
| Staking Side OD | 0.062" (1.57mm) | |
| Staking Side ID | - | |
| Mounting Hole Diameter | 0.067" (1.70mm) | |
| Board Thickness | 0.062" (1.57mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Other Names | 1508-2K 1508-2K-ND 36-1508-2 KEY1228 KEY1228-ND | |
| call me | [email protected] | |
