- Part Number

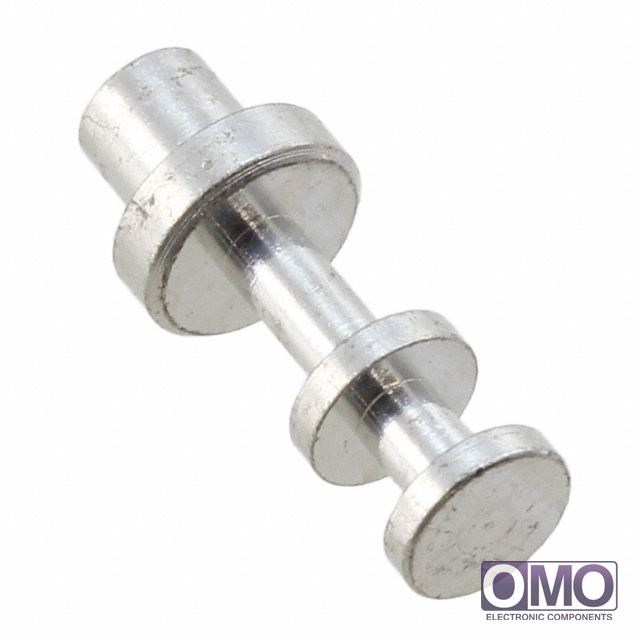

1503-2
- Manufacturer
Keystone Electronics Corp.
- Description
- TERMINAL TURRET DBL .109"L BRASS
- Category
- Connectors, Interconnects
- Family
- Terminals - Turret Connectors
- To learn about the specification of 1503-2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1503-2 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1503-2.
- We are offering 1503-2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1503-2
| Terminal Type | Single End | |
| Number of Turrets | Double | |
| Length - Above Board | 0.360" (9.14mm) | |
| Length - Below Flange | 0.109" (2.77mm) | |
| Length - Overall | 0.469" (11.90mm) | |
| Mounting Type | Through Hole | |
| Termination | Staking Flare | |
| Flange Diameter | 0.187" (4.75mm) | |
| Diameter - Turret Head | 0.145" (3.68mm) | |
| Staking Side OD | 0.112" (2.84mm) | |
| Staking Side ID | - | |
| Mounting Hole Diameter | 0.116" (2.95mm) | |
| Board Thickness | 0.062" (1.57mm) | |
| Contact Material | Brass | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Other Names | 1503-2K 1503-2K-ND 36-1503-2 | |
| call me | [email protected] | |
