- Part Number
1470509-1
- Manufacturer
TE Connectivity AMP Connectors
- Description

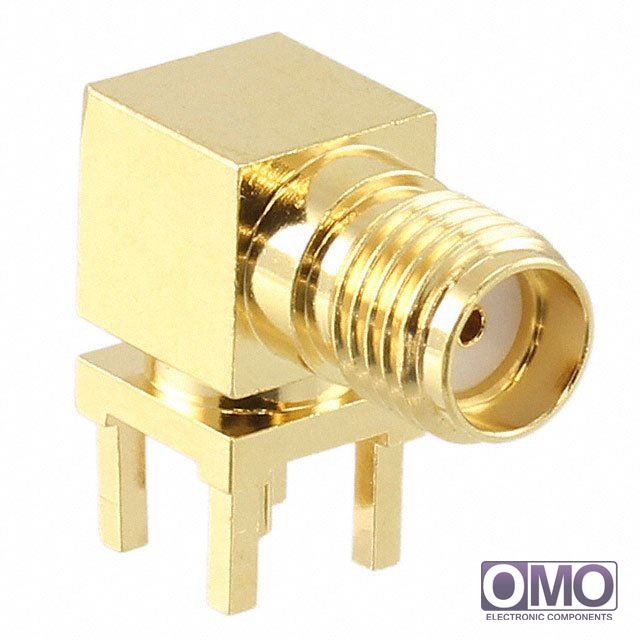

- CONN SMA JACK R/A 50OHM PCB
- Category
- Connectors, Interconnects
- Family
- Coaxial Connectors (RF)
- To learn about the specification of 1470509-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1470509-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1470509-1.
- We are offering 1470509-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1470509-1
| Packaging | Tray | |
| Connector Style | SMA | |
| Connector Type | Jack, Female Socket | |
| Contact Termination | Solder | |
| Shield Termination | Solder | |
| Impedance | 50 Ohm | |
| Mounting Type | Through Hole, Right Angle | |
| Cable Group | - | |
| Fastening Type | Threaded | |
| Frequency - Max | 6GHz | |
| Features | Board Guide | |
| Housing Color | Gold | |
| Ingress Protection | - | |
| Body Material | Brass | |
| Body Finish | Gold | |
| Center Contact Material | Beryllium Copper | |
| Center Contact Plating | Gold | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Voltage Rating | - | |
| Operating Temperature | - | |
| Other Names | A118233 | |
| call me | [email protected] | |
