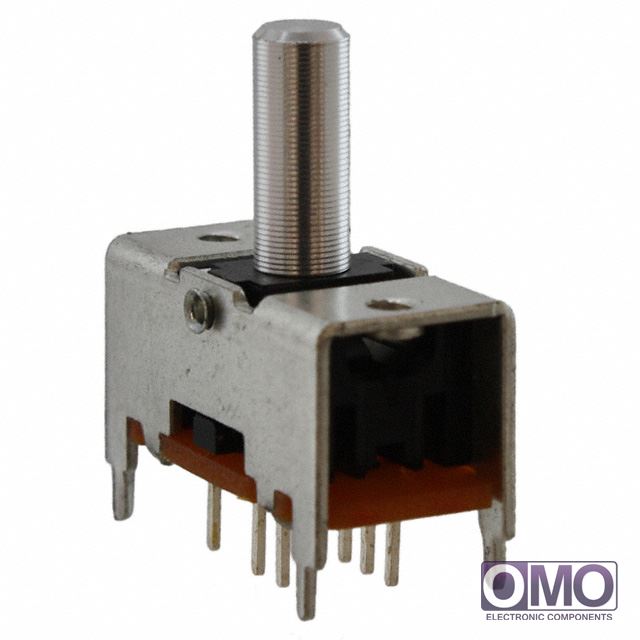

- Part Number
1437576-4
- Manufacturer
TE Connectivity Alcoswitch Switches
- Description
- SWITCH SLIDE DP3T 300MA 125V
- Category
- Switches
- Family
- Slide Switches
- To learn about the specification of 1437576-4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1437576-4 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1437576-4.
- We are offering 1437576-4 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1437576-4
| Packaging | Tray | |
| Circuit | DP3T | |
| Contact Timing | Non-Shorting (BBM) | |
| Switch Function | On-On-On | |
| Current Rating | 300mA (AC), 200mA (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Baton | |
| Actuator Length | 12.00mm | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | ABS Plastic, Aluminum Cap | |
| Switch Travel | 30° | |
| Operating Temperature | -15°C ~ 55°C | |
| Mechanical Life | 10,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| Operating Force | 200 ~ 600gf | |
| Other Names | 1437576-4-ND 14375764 450-1802 CST023NK CST023NK-ND Q1858704 | |
