1402-3

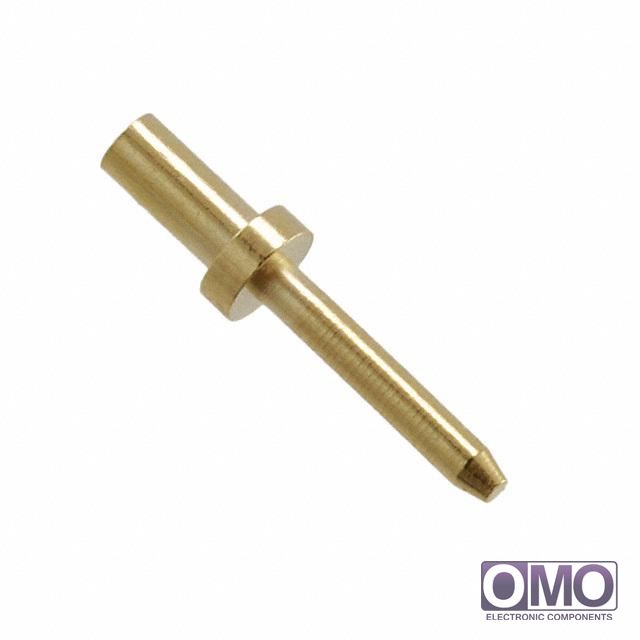

View larger image

Part Number

1402-3

Manufacturer

Description
CONN PC PIN CIRC 0.040DIA GOLD
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
  • To learn about the specification of 1402-3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 1402-3 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 1402-3.
  • We are offering 1402-3 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1402-3
PackagingBulk
Terminal TypePC Pin
Terminal StyleSingle End
Pin Size - Above Flange0.040" (1.02mm) Dia
Pin Size - Below Flange0.058" (1.47mm) Dia
Length Above Flange0.240" (6.10mm)
Length Below Flange0.125" (3.18mm)
Length - Overall0.395" (10.03mm)
Flange Diameter0.093" (2.36mm)
Mounting Hole Diameter0.062" (1.57mm)
Mounting TypeThrough Hole
TerminationSwage
InsulationNon-Insulated
Board Thickness0.093" (2.36mm)
Contact MaterialBrass
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Other Names1402-3K
1402-3K-ND
14023
36-1402-3
