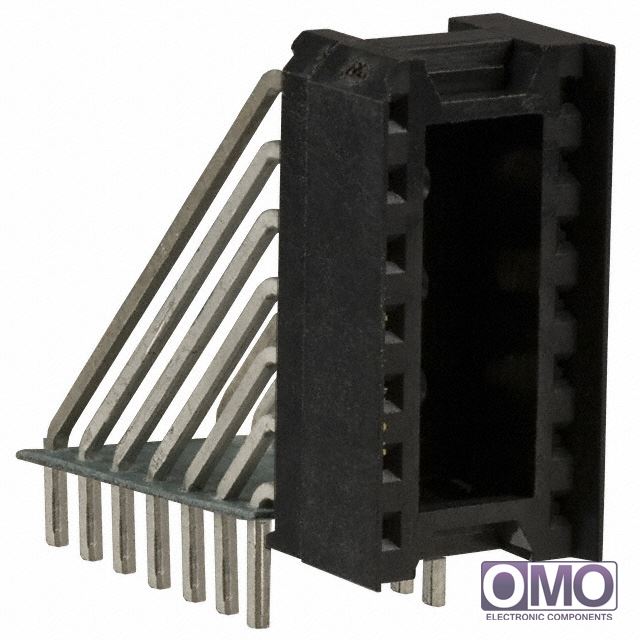

14-810-90T

To learn about the specification of 14-810-90T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 14-810-90T with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 14-810-90T.
We are offering 14-810-90T for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 14-810-90T

Packaging	Bulk
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	14 (2 x 7)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200µin (5.08µm)
Contact Material - Mating	Phosphor Bronze
Mounting Type	Through Hole, Right Angle, Vertical
Features	Closed Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200µin (5.08µm)
Contact Material - Post	Phosphor Bronze
Housing Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-
Termination Post Length	0.145" (3.68mm)
Material Flammability Rating	UL94 V-0
Current Rating	1.5A
Contact Resistance	-
Other Names	1481090T A120
