- Part Number
1393481-1
- Manufacturer
TE Connectivity AMP Connectors
- Description

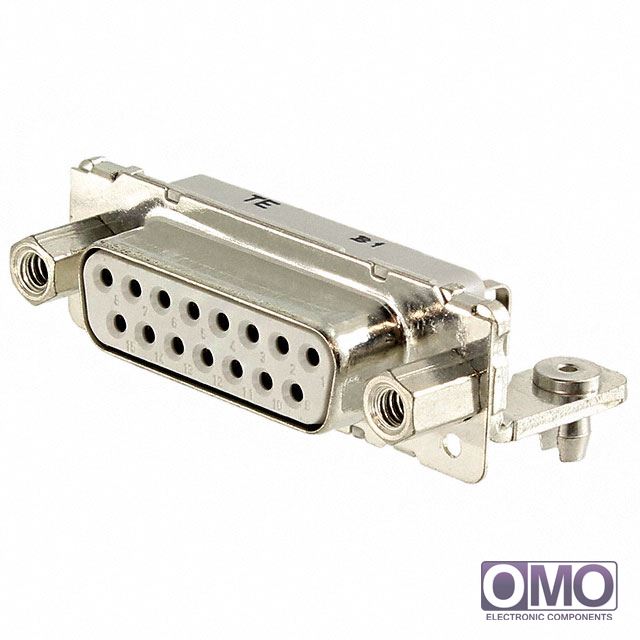

- D-Sub Connector Receptacle, Female Sockets 15 Position Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 1393481-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1393481-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1393481-1.
- We are offering 1393481-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side; Female Screwlock (M3) | |
| Termination | Solder | |
| Features | Mounting Brackets | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 2.2A | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Color | Black | |
| Other Names | A117238 V23529B1225B215 | |
