- Part Number
130625
- Manufacturer
TE Connectivity AMP Connectors
- Description

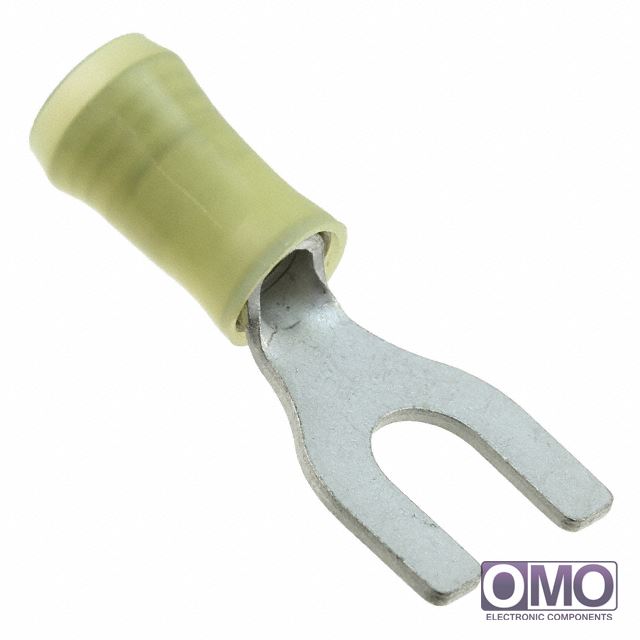

- CONN SPADE TONG 12-10AWG M6 PIDG
- Category
- Connectors, Interconnects
- Family
- Terminals - Spade Connectors
- To learn about the specification of 130625, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 130625 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 130625.
- We are offering 130625 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 130625
| Packaging | Bulk | |
| Terminal Type | Standard | |
| Stud/Tab Size | M6 Stud | |
| Width - Outer Edges | 0.531" (13.49mm) | |
| Length - Overall | 1.299" (33.00mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 10-12 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Yellow | |
| Contact Finish | Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.150" ~ 0.252" (3.81mm ~ 6.40mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.437" (11.10mm) | |
| Length - Termination | 0.606" (15.39mm) | |
| Tongue Inside Opening | 0.250" (6.35mm) | |
| Other Names | 130625-ND A112033 | |
| call me | [email protected] | |
