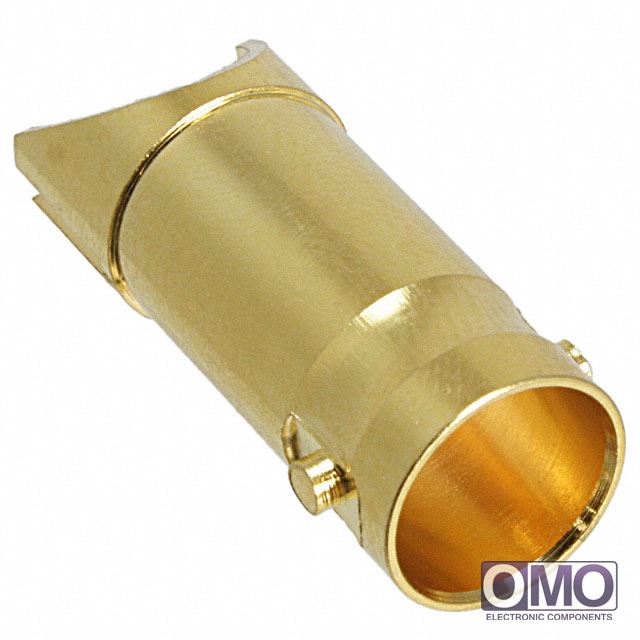

Part Number

112801

Manufacturer

Description
CONN BNC JACK 75 OHM EDGE MNT
Category
Connectors, Interconnects
Family
Coaxial Connectors (RF)

  • To learn about the specification of 112801, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 112801 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 112801.
  • We are offering 112801 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 112801
PackagingBulk
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Shield TerminationSolder
Impedance75 Ohm
Mounting TypeBoard Edge, End Launch
Cable Group-
Fastening TypeBayonet Lock
Frequency - Max3GHz
Features-
Housing ColorGold
Ingress Protection-
Body MaterialBrass
Body FinishGold
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Voltage Rating500V
Operating Temperature-65°C ~ 165°C
Other NamesACX2267
