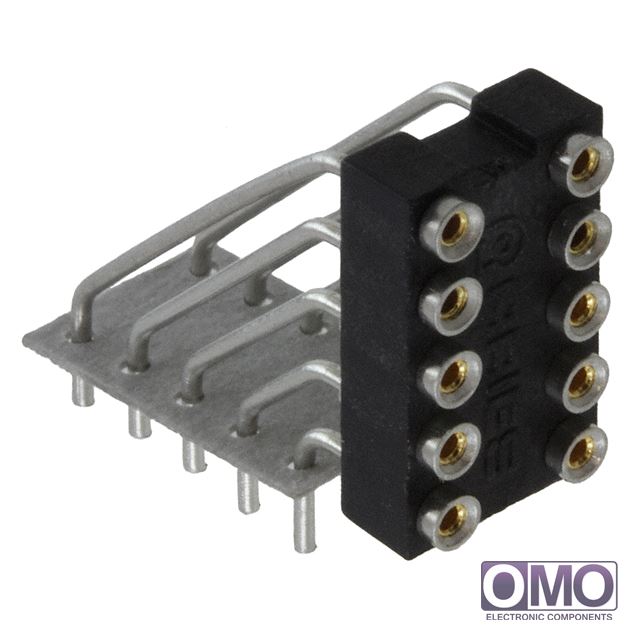

10-2810-90C

To learn about the specification of 10-2810-90C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 10-2810-90C with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 10-2810-90C.
We are offering 10-2810-90C for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 10-2810-90C

Packaging	Bulk
Type	DIP, 0.2" (5.08mm) Row Spacing
Number of Positions or Pins (Grid)	10 (2 x 5)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30µin (0.76µm)
Contact Material - Mating	Beryllium Copper
Mounting Type	Through Hole, Right Angle, Vertical
Features	Closed Frame
Termination	Solder
Pitch - Post	0.100" (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	200µin (5.08µm)
Contact Material - Post	Brass
Housing Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Operating Temperature	-
Termination Post Length	0.140" (3.56mm)
Material Flammability Rating	UL94 V-0
Current Rating	3A
Contact Resistance	-
Other Names	10-2810-90C-ND A787AR Q3402512
