Part Number

1-916783-5

Manufacturer

Description

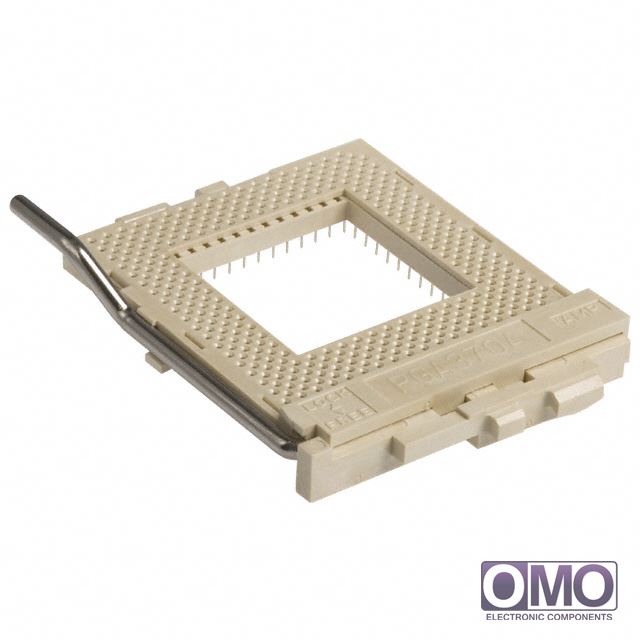

CONN SOCKET PGA ZIF 370POS GOLD
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors

  • To learn about the specification of 1-916783-5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 1-916783-5 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 1-916783-5.
  • We are offering 1-916783-5 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1-916783-5
PackagingTray
TypePGA, ZIF (ZIP)
Number of Positions or Pins (Grid)370 (19 x 19)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating15µin (0.38µm)
Contact Material - MatingPhosphor Bronze
Mounting TypeThrough Hole
FeaturesOpen Frame
TerminationSolder
Pitch - Post0.100" (2.54mm)
Contact Finish - PostGold
Contact Finish Thickness - Post15µin (0.38µm)
Contact Material - PostPhosphor Bronze
Housing MaterialLiquid Crystal Polymer (LCP)
Operating Temperature-
Termination Post Length0.110" (2.78mm)
Material Flammability RatingUL94 V-0
Current Rating-
Contact Resistance-
