- Part Number

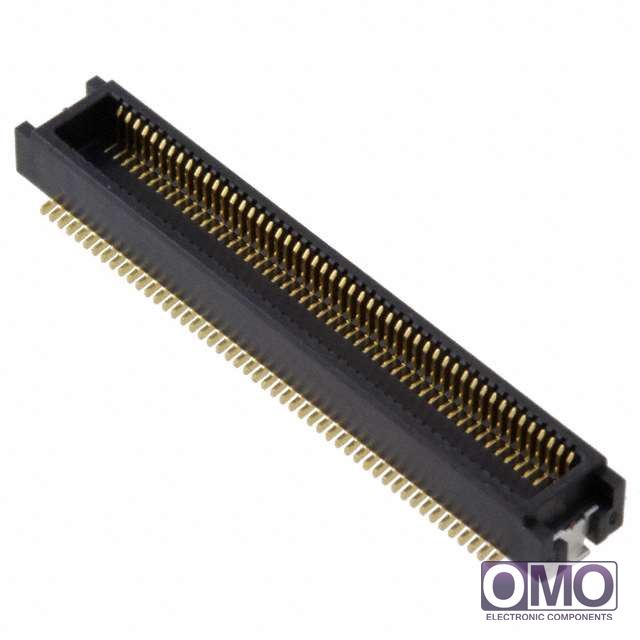

1-1565359-1
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN PLUG 100POS VERT IN-LINE
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 1-1565359-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 1-1565359-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 1-1565359-1.
- We are offering 1-1565359-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 1-1565359-1
| Packaging | Cut Tape (CT) | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 100 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 4mm, 4.5mm | |
| Height Above Board | 0.130" (3.30mm) | |
| Other Names | A117816CT | |
| call me | [email protected] | |
