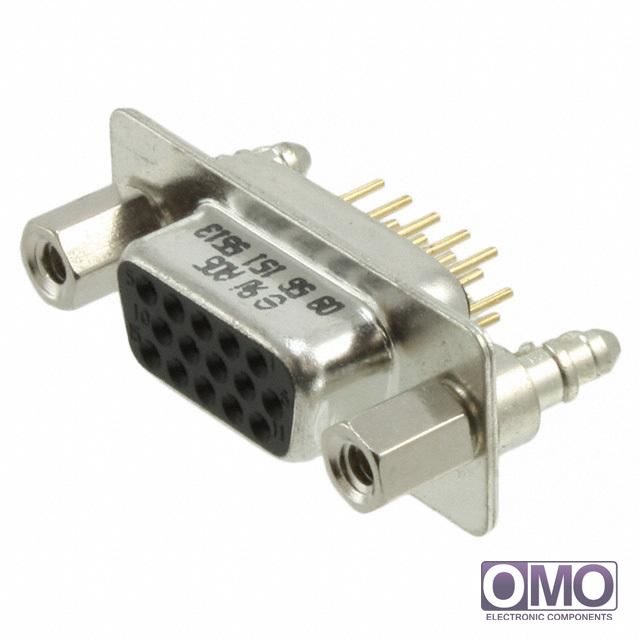

- Part Number
09561515513
- Manufacturer
Harting
- Description
- D-Sub Connector Receptacle, Female Sockets 15 Position Through Hole Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of 09561515513, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 09561515513 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 09561515513.
- We are offering 09561515513 for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Bulk | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 1 (DE, E) High Density | |
| Contact Type | Signal | |
| Mounting Type | Through Hole | |
| Flange Feature | Mating Side; Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold or Gold-Palladium | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 2A | |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | |
| Color | Black | |
| Other Names | 1195-2298 9561515513 | |
