09561005601

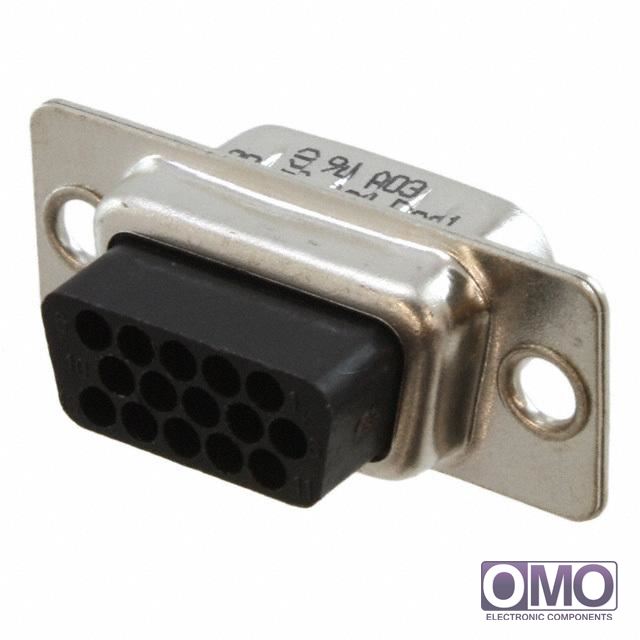

View larger image

Part Number

09561005601

Manufacturer

Description
D-SUB HD MA CRIMP SHELL 15P
Category
Connectors, Interconnects
Family
D-Sub, D-Shaped Connectors - Housings
  • To learn about the specification of 09561005601, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 09561005601 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 09561005601.
  • We are offering 09561005601 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 09561005601
PackagingBulk
Connector StyleD-Sub, High Density
Connector TypePlug for Male Contacts
Number of Positions15
Number of Rows3
Shell Size, Connector Layout1 (DE, E) High Density
Contact TypeSignal
Mounting TypePanel Mount
Flange FeatureHousing/Shell (Unthreaded)
FeaturesGrounding Indents
Shell Material, FinishSteel, Tin Plated
Shell Finish Thickness-
NoteContacts Not Provided
Ingress Protection-
Operating Temperature-55°C ~ 105°C
Mating Cycles-
Dielectric MaterialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Color-
Other Names09 56 100 5601
1195-2296
9561005601
