09561004701

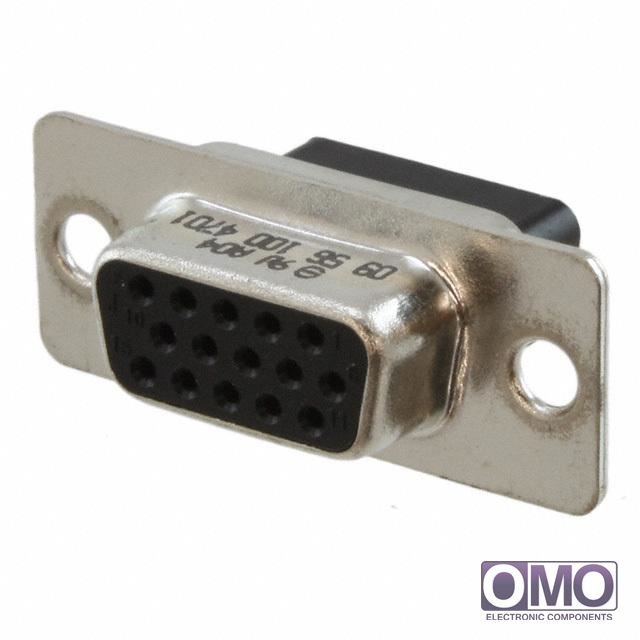

View larger image

Part Number

09561004701

Manufacturer

Description
D SUB HD FE CRIMP SHELL 15P
Category
Connectors, Interconnects
Family
D-Sub, D-Shaped Connectors - Housings
  • To learn about the specification of 09561004701, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 09561004701 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 09561004701.
  • We are offering 09561004701 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 09561004701
PackagingBulk
Connector StyleD-Sub, High Density
Connector TypeReceptacle for Female Contacts
Number of Positions15
Number of Rows3
Shell Size, Connector Layout1 (DE, E) High Density
Contact TypeSignal
Mounting TypePanel Mount
Flange FeatureHousing/Shell (Unthreaded)
Features-
Shell Material, FinishSteel, Tin Plated
Shell Finish Thickness-
NoteContacts Not Provided
Ingress Protection-
Operating Temperature-55°C ~ 105°C
Mating Cycles-
Dielectric MaterialPolybutylene Terephthalate (PBT), Polyester, Glass Filled
Color-
Other Names1195-2294
9561004701
