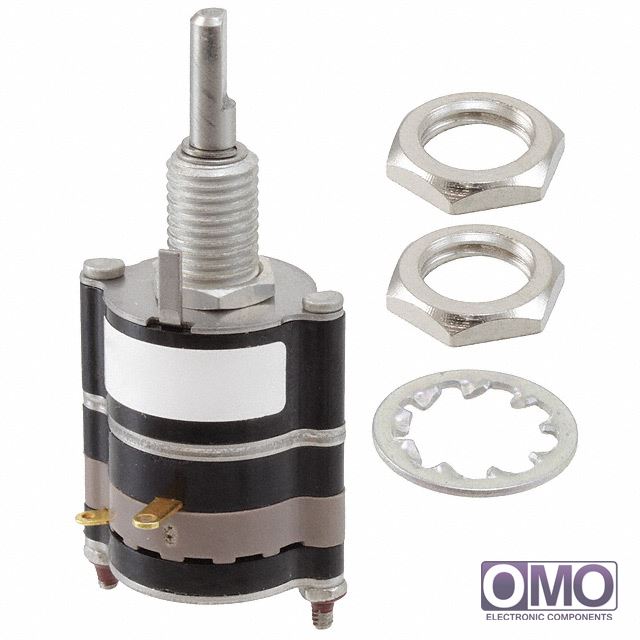

- Part Number
093101-1-04N
- Manufacturer
Grayhill, Inc.
- Description
- SWITCH ROTARY 1P 4POS NONSHORT
- Category
- Switches
- Family
- Rotary Switches
- To learn about the specification of 093101-1-04N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 093101-1-04N with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 093101-1-04N.
- We are offering 093101-1-04N for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 093101-1-04N
| Number of Positions | 4 | |
| Index Stops | Fixed | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SP4T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 250mA (AC/DC) | |
| Voltage Rating - AC | 115V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Flatted (3.17mm Dia) | |
| Actuator Length | 7.92mm | |
| Angle of Throw | 30° | |
| Contact Material | Silver Alloy | |
| Contact Finish | Gold | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | - | |
| Depth Behind Panel | 24.38mm | |
| Panel Cutout Dimensions | - | |
| Operating Force, Torque | 8 ~ 64 in-oz | |
| Other Names | Q6321585A | |
| call me | [email protected] | |
